Receive messages and calls (REST)

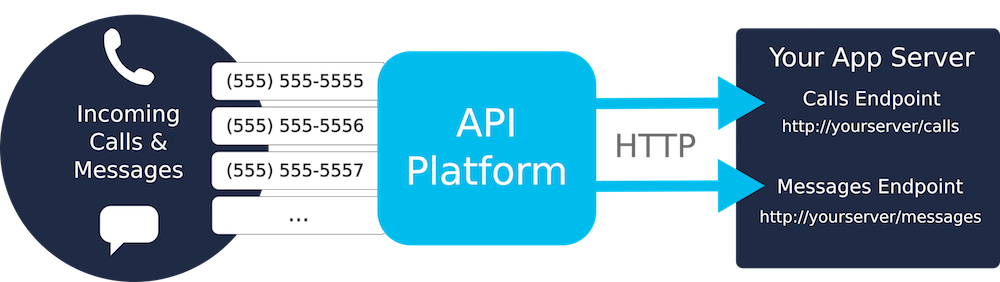

Incoming calls and messages are sent to a web address configured in applications.

In order to receive incoming call and messaging events, you'll need to:
Sample Payloads
For detailed information on all callbacks, refer to the full API reference:
Incoming Messages
POST /your_url HTTP/1.1
Content-Type: application/json; charset=utf-8
User-Agent: BandwidthAPI/v1
{
"eventType" : "sms",
"direction" : "in",
"messageId" : "{messageId}",
"messageUri" : "https://api.catapult.inetwork.com/v1/users/{userId}/messages/{messageId}",
"from" : "+13233326955",
"to" : "+13865245000",
"text" : "Example",
"applicationId" : "{appId}",
"time" : "2012-11-14T16:13:06.076Z",
"state" : "received"
}
Incoming Phone Call
POST /your_url HTTP/1.1
Content-Type: application/json; charset=utf-8
User-Agent: BandwidthAPI/v1
{
"eventType" : "incomingcall",
"from" : "+13233326955",
"to" : "+13865245000",
"callId" : "{callId}",
"callUri" : "https://api.catapult.inetwork.com/v1/users/{userId}/calls/{callId}",
"callState" : "active",
"applicationId" : "{appId}",
"time" : "2012-11-14T16:21:59.616Z"
}
Example: Create an application
curl -v -X POST https://api.catapult.inetwork.com/v1/users/{userId}/applications \
-u {token}:{secret} \
-H "Content-type: application/json" \
-d \
'
{
"name": "MyFirstApp",
"incomingCallUrl": "http://example.com/calls.php",
"incomingMessageUrl": "http://example.com/messages.php",
"callbackHttpMethod": "GET",
"autoAnswer": true
}'
//Promise
client.Application.create({
name: 'MyFirstApp',
incomingCallUrl: 'http://your-server.com/CallCallback',
incomingMessageUrl: 'http://your-server.com/MsgCallback'
})
.then(function (application) {
console.log(application.id);
});
var application = await client.Application.CreateAsync(new CreateApplicationData{
Name = "SampleApp2",
IncomingCallUrl = "http://your-server.com/CallCallback",
IncomingMessageUrl = "http://your-server.com/MsgCallback"
});
application = Application.create(client, {
:name => "SampleApp2",
:incoming_call_url => "http://your-server.com/CallCallback",
:incoming_message_url => "http://your-server.com/MsgCallback"
})
Example: Search and order phone number
curl -v -X POST https://api.catapult.inetwork.com/v1/availableNumbers/local?city=Cary&state=NC&quantity=2 \
-u {token}:{secret} \
-H "Content-type: application/json" \
// Search 2 available local phone numbers with area code 910 and order them
// Promise
client.AvailableNumber.searchAndOrder("local", { areaCode : "910", quantity : 2 }).then(function (numbers) {});
// Callback
client.AvailableNumber.serchAndOrder("local", { areaCode : "910", quantity : 2 }, function (err, numbers) {});
var results = await client.AvailableNumber.SearchAndOrderLocalAsync(
new LocalNumberQueryForOrder{ AreaCode = "910", Quantity = 2});
var firstResult = results.First();
var number = firstResult.Number;
var numberId = firstResult.Id;
results = AvailableNumber.search_and_order_local(client, {area_code: '910', quantity: 2})
first_result = results.next
number = first_result[:number]
number_id = first_result[:id]
Example: Add phone number to application
curl -v -X POST https://api.catapult.inetwork.com/v1/users/{userId}/phoneNumbers/{numberId} \
-u {token}:{secret} \
-H "Content-type: application/json" \
-d \
'
{
"applicationId": "{application_id}"
}'
// Promise
client.PhoneNumber.update(numberId, {applicationId: "{application_id}"}).then(function(){});
// Callback
client.PhoneNumber.update(numberId, {applicationId: "{application_id}"}, function(err){});
await client.PhoneNumber.UpdateAsync(numberId, new UpdatePhoneNUmberData {
ApplicationId = "{application_id}"
});
phoneNumber.update({:application_id => "{application_id}"})
Example: Setup an application and order phone number
// npm install --save node-bandwidth
var Bandwidth = require("node-bandwidth");
var client = new Bandwidth({
userId : "{{userId}}",
apiToken : "{{apiToken}}",
apiSecret : "{{apiSecret}}"
});
function createApplication (params) {
return client.Application.create(params)
}
function searchAndOrderPhoneNumber (state, applicationId) {
return client.AvailableNumber.search("local", {state: state})
.then(function (availableNumbers) {
//Parameters for ordering the phone number
var phoneNumberPayload = {
//Be sure to set the applicationId to the id of application created
applicationId : applicationId,
number : availableNumbers[0].number,
name : availableNumbers[0].nationalNumber
}
//Order the phone number
return client.PhoneNumber.create(phoneNumberPayload);
});
}
//Parameters for creating new application
var appPayload = {
name: "MyFirstApp2", // Name
incomingCallUrl: "http://example.com/calls", //Callback URL for phone calls
incomingMessageUrl : "http://example.com/messages" //Callback URL for messages
};
createApplication(appPayload)
.then(function (application) {
console.log("Application ID: " + application.id);
return searchAndOrderPhoneNumber("NC", application.id);
})
.catch(function (e) {
console.error(e);
throw e;
});
//Download the .net sdk from ap.bandwidth.com/docs/helper-libraries/net
using System;
using System.Threading.Tasks;
using Bandwidth.Net;
using Bandwidth.Net.Api;
public class Program
{
//API credentials which can be found on your account page at https://catapult.inetwork.com/pages/login.jsf
private const string UserId = "{{userId}}"; //{user_id}
private const string Token = "{{apiToken}}"; //{token}
private const string Secret = "{{apiSecret}}"; //{secret}
public static void Main()
{
try
{
RunAsync().Wait();
}
catch (Exception ex)
{
Console.Error.WriteLine(ex.Message);
Environment.ExitCode = 1;
}
}
private static async Task RunAsync()
{
var client = new Client(UserId, Token, Secret);
var app = await client.Application.CreateAsync(new CreateApplicationData
{
Name = "MyFirstApp",
IncomingCallUrl = "http://example.com/calls.php",
IncomingMessageUrl = "http://example.com/messages.php",
CallbackHttpMethod = CallbackHttpMethod.Post,
AutoAnswer = true
});
await client.PhoneNumber.UpdateAsync("{numberId}", new UpdatePhoneNumberData {ApplicationId = app.Id});
}
}
